WK-1616-4K30-1U, 1U full-width
KVM over IP · rack chassis · In development
WK chassis family
Dedicated capture and encode hardware behind every connector: 8, 16, or 32 ports, all streaming 4K simultaneously, run as one system with one IP, one login, and one audit trail.
Configuration
Pricing preliminary until release · quoted, not carted
Capabilities
What it does.
A KVM behind every port
Dedicated capture and encode hardware behind each connector. All ports stream 4K at 30 Hz at the same time; nothing is shared, nothing queues.
Nothing to install
Two cables per target, HDMI and USB, and the machine is on the plane. No agent on the host, no dongles on the cable.
Firmware that recovers itself
Every port module boots from a golden SPI image and updates A/B on its own 8 GB eMMC. A bad flash rolls back on its own.
One system at any size
Federate any WK or WO unit into a single IP, a single login, and one audit trail, from eight ports on a desk to racks of chassis.
Audit-grade access
RBAC with per-port permissions, and session recording that lands on onboard NVMe rather than someone's laptop.
Structurally isolated
Port modules are never reachable from the customer network, and management and production networks are physically separate.
Overview
Every port is its own KVM.
Dedicated capture and encode hardware behind each connector means all ports stream 4K simultaneously with nothing to install on the target: two cables and the machine is on the plane.
Firmware boots from a golden SPI image and updates A/B on per-port eMMC: a bad flash rolls back, and any module can be power-cycled without leaving the console. Session recording lands on onboard NVMe.
32
ports in 2U
4K 30
every port, concurrent
$306
per port, from
0
license fees or client seats
The software
One management plane.
Every WarpKVM product runs the same management software. A browser is the only client: every KVM port, serial line, and Mac bay on the federation appears in one pane, behind one IP and one login, with RBAC, session recording, and a full audit trail. No client installs, no per-seat licensing.
Questions
Before you buy.
The enterprise line is quoted, not carted. Write to enterprise@warpkvm.com with the SKUs and port counts you need and we come back with a quote and current lead times. Pricing in the catalog and on these pages is preliminary until release.
Exactly what it says. We list every product with its current status rather than pretending it ships tomorrow: this line is in development, and specifications marked with a dagger are preliminary and can still change. Write to us for the current state and timeline of any unit.
It rolls back. Each port module keeps a golden SPI image and A/B update slots on its own eMMC, and a failed flash reverts automatically. Any module can also be remotely power-cycled without leaving the console.
No. Port modules are isolated from the customer network by construction, and management and production networks are physically separate. That posture is structural, not a firewall rule someone has to maintain.
Yes. Any WK or WO unit joins the same federation: one IP, one login, one audit trail, with RBAC and per-port permissions across all of it. The single-port units sold on the store as WarpKVM 01 and 02 join the same plane, so a branch closet gets the same treatment as a chassis port.
Nothing beyond the hardware. The management plane is built into every unit; there is no overlay server to deploy, license, or patch, no per-node licensing, and no client seats. A browser is the only client.
Technical data
Specifications.

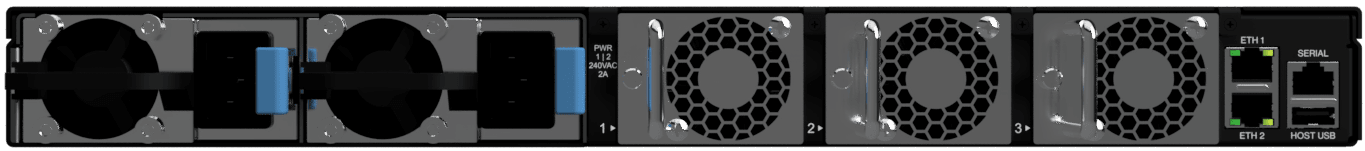

Connectivity

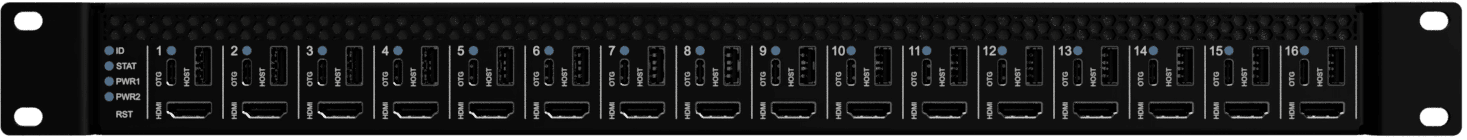

- Targets
- HDMI and USB cable per port, no dongles
- USB-A
- Per-port host connector for serial adapters, peripherals, and ATX control cards
- Ethernet
- Redundant Ethernet inputs
- Power
- Dual redundant 250 W inputs
- Management
- Serial and USB management ports
Management
- Access
- Browser-native console, no client software
- Federation
- Any WK or WO unit: single IP, single login
- Access control
- RBAC, per-port permissions
- Audit
- Session recording to onboard NVMe
- Isolation
- Port modules isolated from the customer network
Capture
- Ports
- Dedicated capture and encode per port
- Resolution
- 3840 × 2160 @ 30 Hz, all ports concurrent
- Encode
- Hardware H.264 / H.265
- Firmware
- Per-port golden SPI image · A/B updates on 8 GB eMMC
- Recovery
- Remote power cycle per port · failed updates roll back
Options
- -DC
- DC power input
- -TAA
- US assembly and US PCBAs · +$700 per unit
Read first
Documentation.
The rack line is documented in the enterprise catalog while it is in development. If something you need is missing, ask and we will write it down.
Enterprise catalog
WKVM-CAT-001 Rev. A. The full rack line: configurations, preliminary pricing, specifications, and the company behind it.
WK chassis family docs
This family in the documentation: what it does, configurations, and the full spec tables, alongside the rest of the rack line.
Talk to us
Quotes, design-partner inquiries, and configuration questions go straight to the people building it.
