KVM over IP · 4K60 · Pre-release

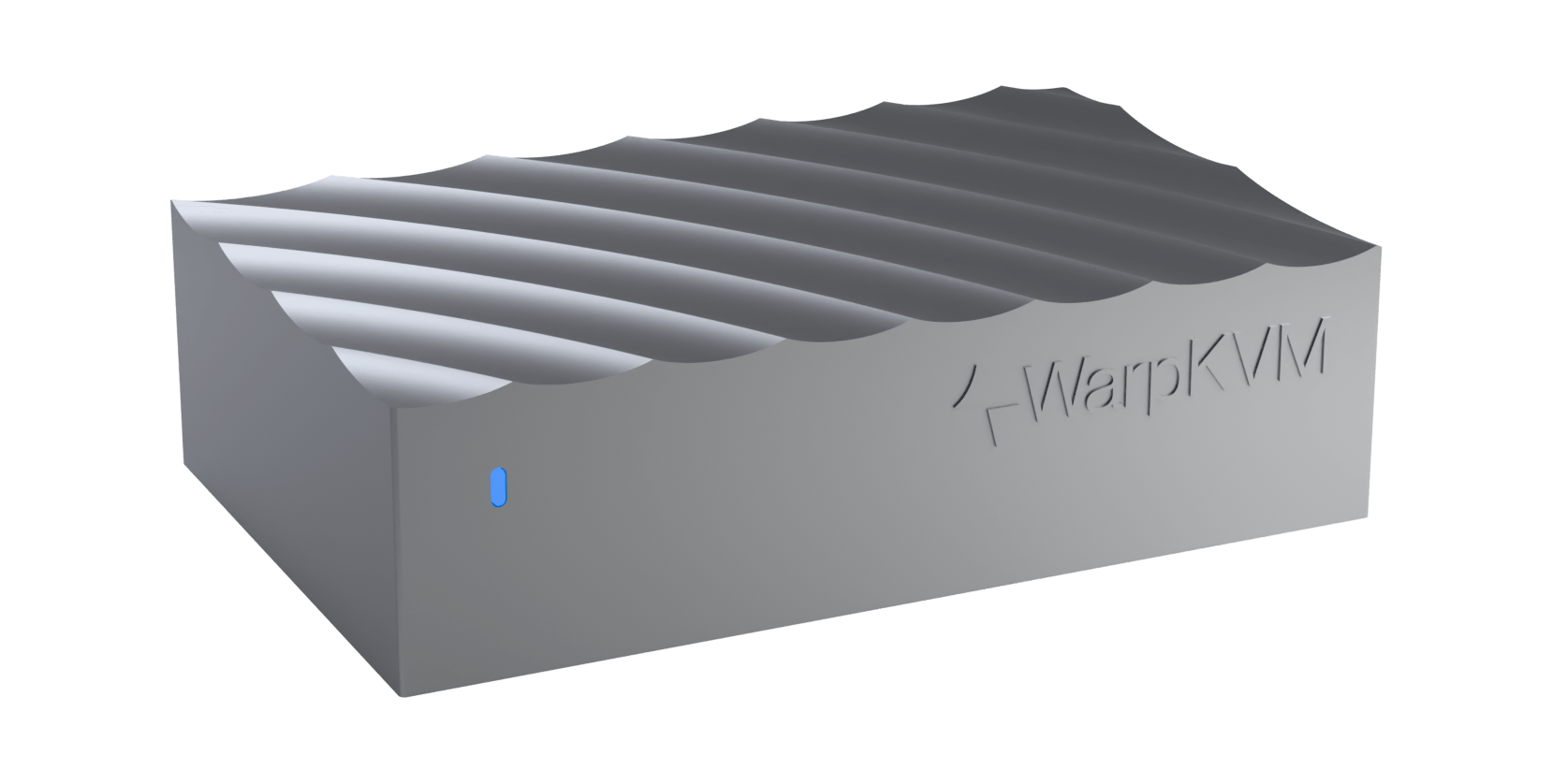

WarpKVM 01
Hardware-grade KVM-over-IP capturing 4K at 60 Hz with a measured 40 ms median click-to-photon latency. Machined aluminum, native Tailscale mesh, open firmware end to end.
Ships Q1 2027 · fully refundable · credited against the $220 launch price
Capabilities
What it does.
Sub-frame latency
40 ms median click-to-photon, measured with a light sensor across 1,000 clicks. Remote stops feeling remote.
Standalone or casting
Drive a display straight from the HDMI out as a standalone console, or cast any machine on your mesh to whatever screen it's plugged into.
Tailscale mesh
Every WarpKVM is a node on your tailnet. No port forwarding, no VPN ceremony, end-to-end encrypted.
BIOS-level control
Reboot, re-image, change boot order. If it has HDMI and USB, you own it down to the firmware, pre-boot included.
USB injection
Keyboard, mouse, and mass-storage emulation. Mount an installer ISO over IP from a continent away.
Open end to end
Firmware, web console, and mobile apps are open source and auditable, with signed updates.
Technical data
Specifications.
Performance
- Max capture
- 4K @ 60 Hz
- Video encoder
- Hardware H.264 / H.265
- Click-to-photon latency
- 40 ms median, light-sensor measured
- HDMI output
- Passthrough + standalone
- Sustained load
- 4K @ 60 Hz encode, passively cooled
Connectivity
- I/O
- 2× HDMI 2.0 · 3× USB-C · 2× Gigabit Ethernet
- HDMI
- Two HDMI 2.0 for capture and passthrough
- USB
- Three USB-C for target, power, and peripherals
- Ethernet
- Two Gigabit ports, daisy-chain capable
- Wireless
- Wi-Fi 6 + Bluetooth
- Mesh
- Native Tailscale, zero open ports, end-to-end encrypted
- Power
- USB-C PD · optional PoE
Compute
- CPU
- 4× Cortex-A72 + 4× Cortex-A53
- Memory
- 2 GB LPDDR4
- Storage
- 32 GB microSD
Build & form

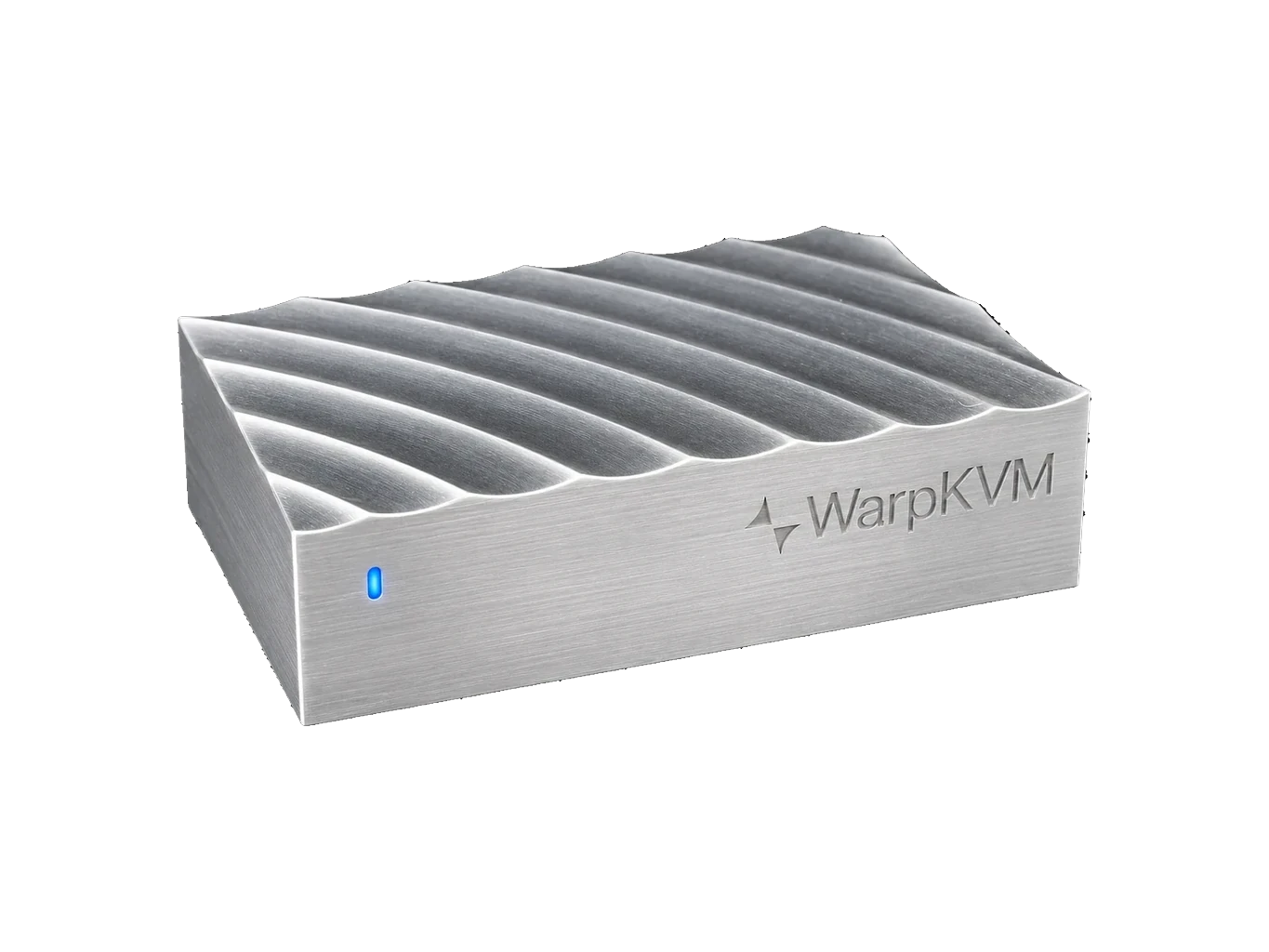

- Enclosure
- Machined aluminum, 6K series

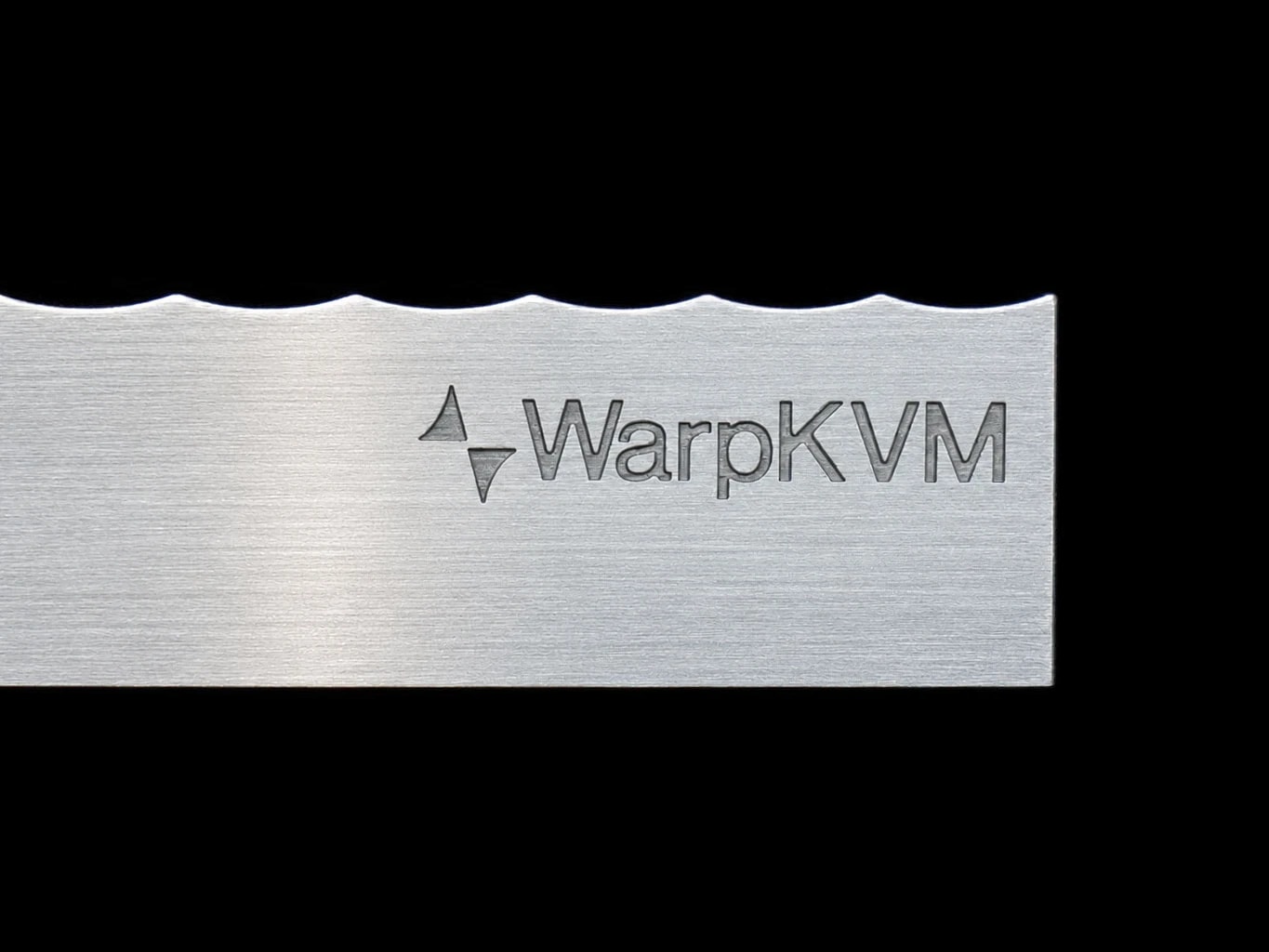

- Faceplate
- Anodized aluminum, 6K series
- Cooling
- Passive, silent, no moving parts
- Dimensions
- 88 × 56 × 26 mm
- Weight
- ~150 g
- Mounting
- 4× M3 threaded inserts · rack-mount compatible
- Status indicator
- Single LED reading power, link, and mesh

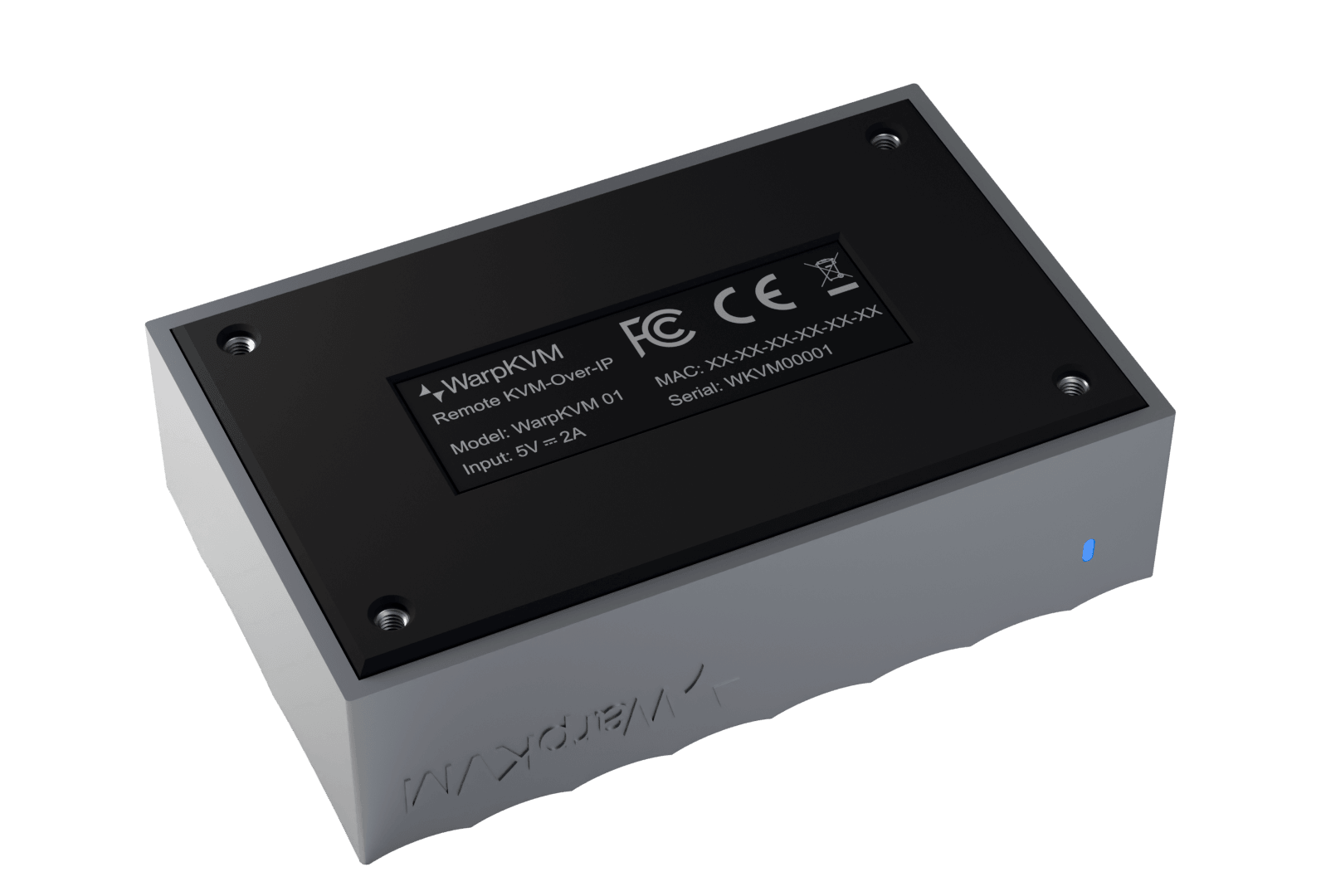

- Certifications
- CE · FCC · RoHS
- Sustainability
- 95% recyclable, designed to be opened and repaired

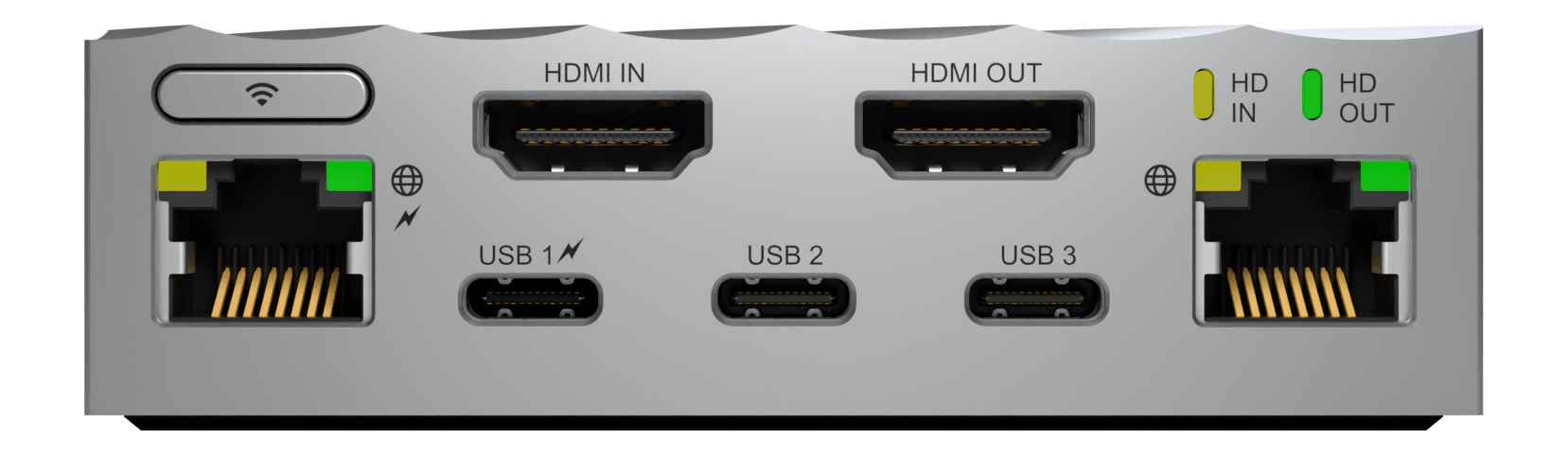

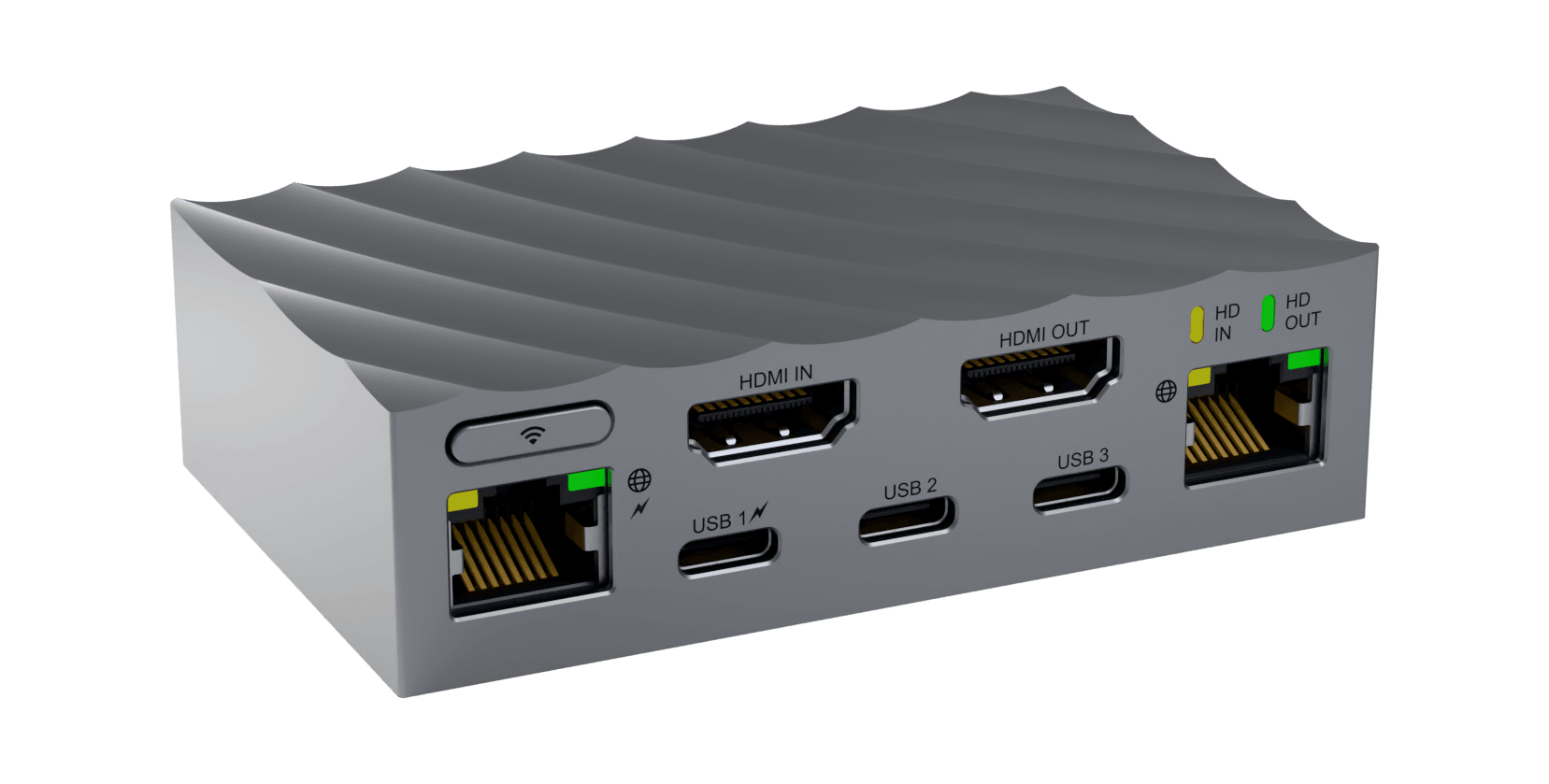

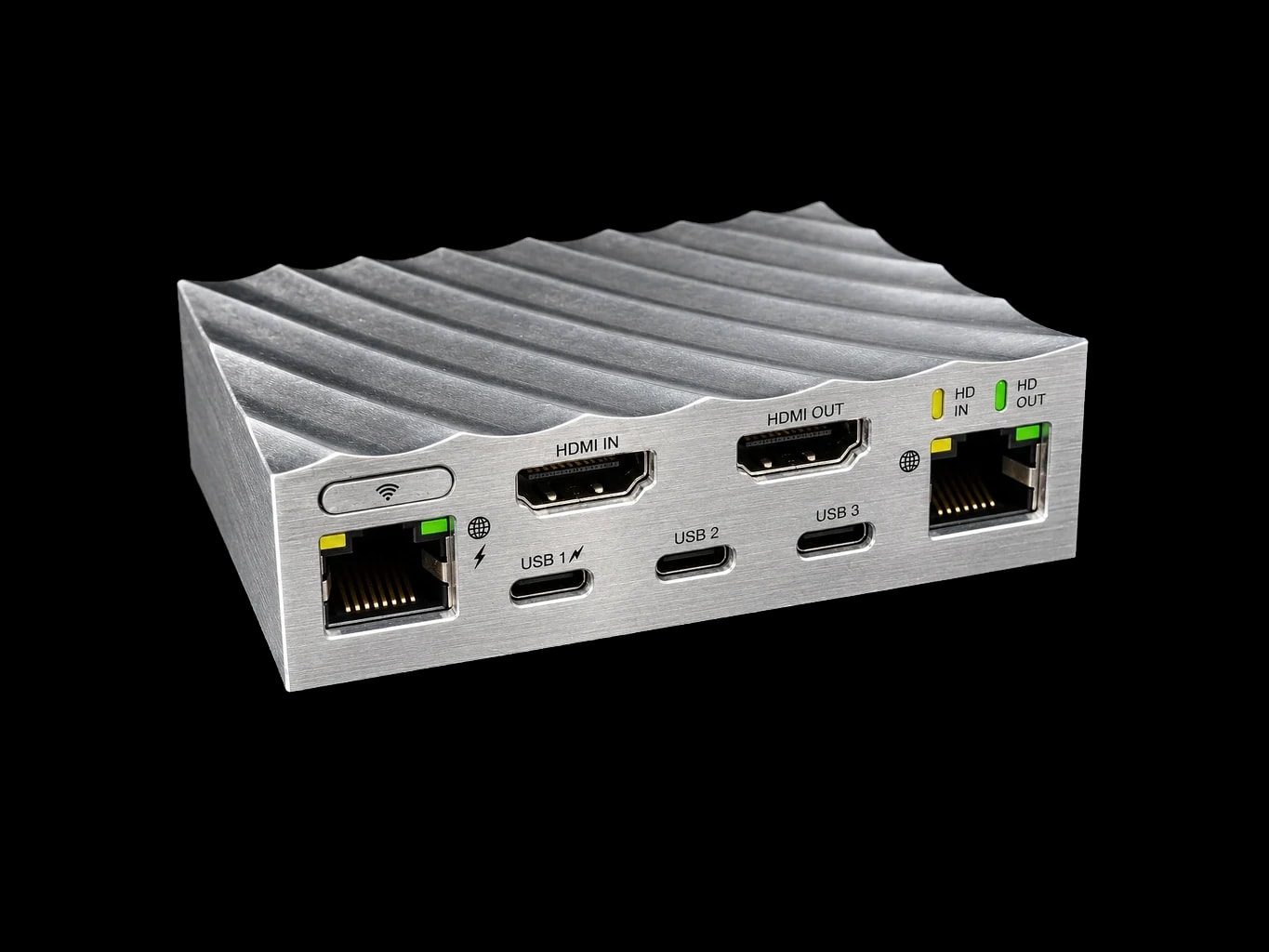

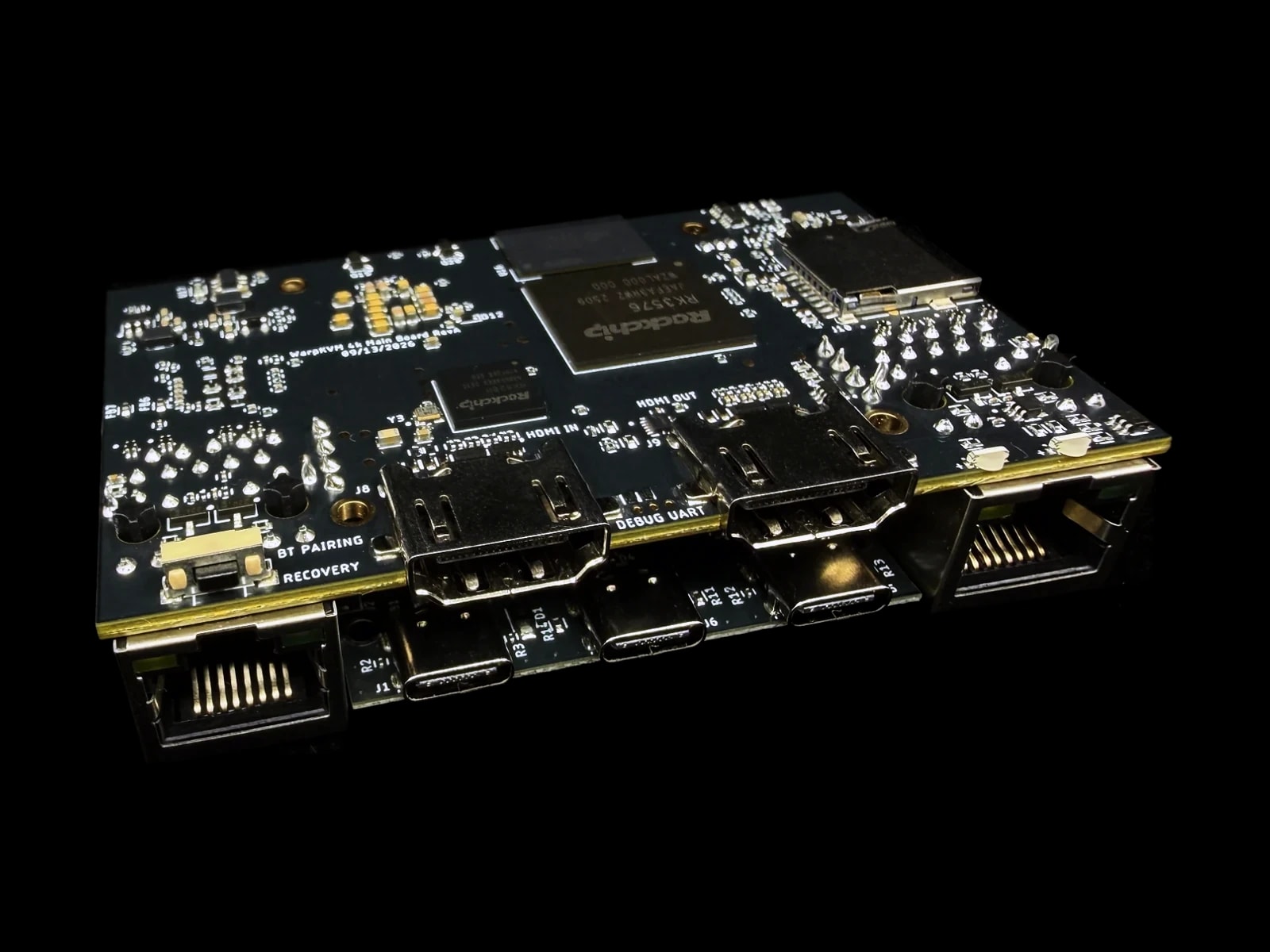

I/O
Every port, mapped.
- BLE / Wi-Fi
- Pairing button
- HDMI
- Input
- HDMI
- Output
- Diagnostic
- Video LEDs
- Ethernet
- 1 Gb · PoE in
- USB-C 1
- Power in
- USB-C 2
- HID · mouse out
- USB-C 3
- Expansion
- Ethernet
- 1 Gb · daisy-chain
Scale
One node
or a thousand.
Every WarpKVM is a node on the same mesh. Start with a single machine and grow to a rack, a lab, a fleet. The architecture never changes; only the count does.
×1
One computer
Your daily driver, yours from anywhere. BIOS to desktop, under 40 ms away.
×3
Three monitors
A node per head. Every display of the battlestation, captured and reachable.
×1
The living-room TV
Casting mode: HDMI out to the big screen, your gaming rig from the couch.
×1
A server in the homelab
Headless by design, never out of reach. Rescue a wedged box without leaving bed.
×∞
A datacenter
Daisy-chained Ethernet, one tailnet, multi-device view. The whole fleet in one pane.
