KVM over IP · 4K30 · Pre-release
WarpKVM 02

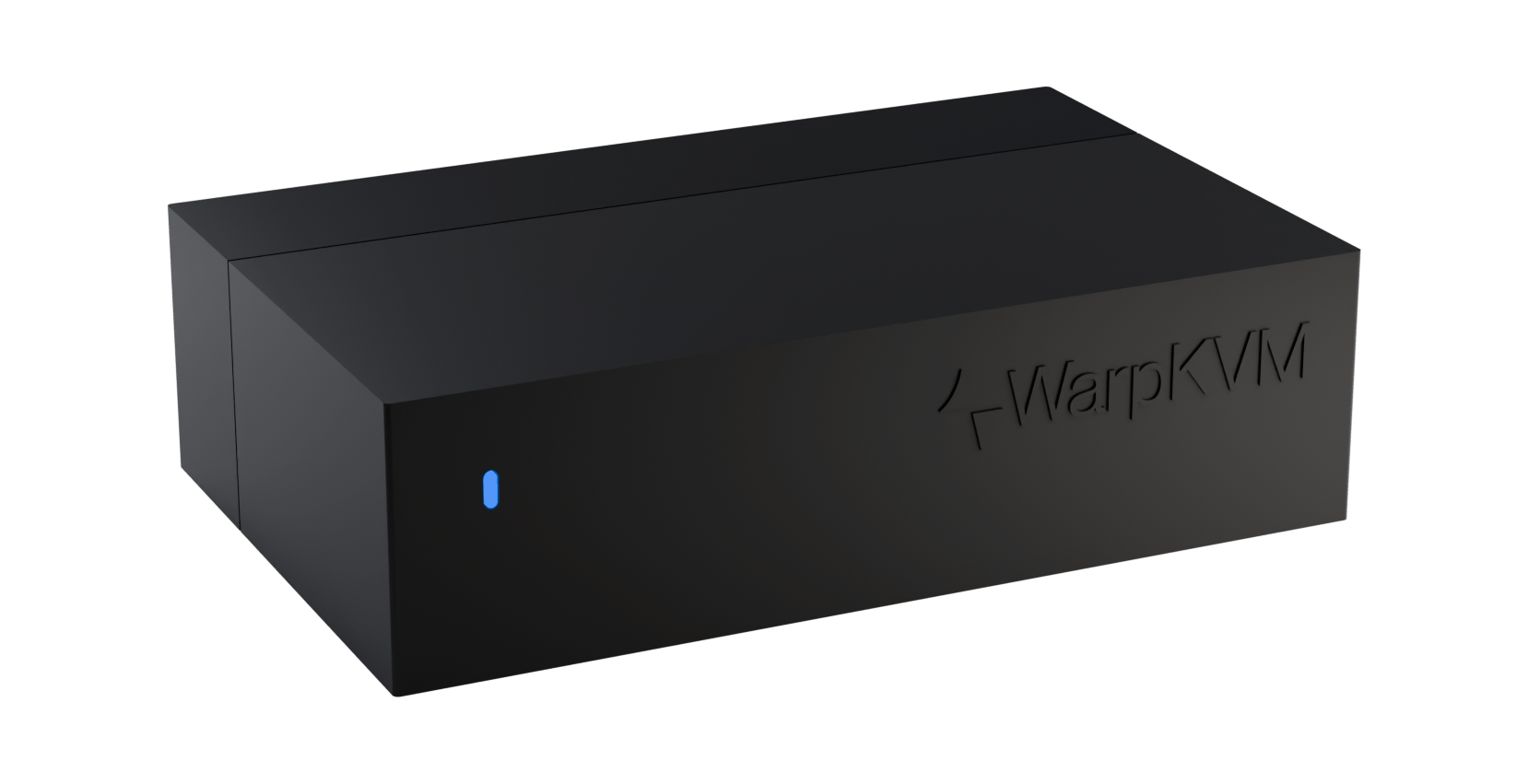

Built for the rack: the same capture pipeline and open firmware as the flagship in a black injection-molded enclosure made for datacenter deployments. Captures and encodes 4K at 30 Hz, with the local HDMI out at 1080p 60. Same latency target, same I/O, same mesh stack.
Ships 2027 · $140 at launch
Capabilities
What it does.
Same latency target
Runs the flagship's pipeline: about 30 ms added at 1080p60 with the WarpKVM app, measured on the same software.
Standalone or casting
Works as a standalone console, or as a casting device: plug the HDMI out into a display and pull up any machine on your mesh. The local out runs at 1080p 60; the full-resolution path is the stream.
Same mesh stack
Native Tailscale, zero open ports, end-to-end encrypted. One tailnet for the whole fleet.
BIOS-level control
Reboot, re-image, change boot order. The same pre-boot access as the flagship, down to the firmware.
USB-C host emulation
Keyboard, mouse, and mass storage. Re-image a machine from anywhere.
Open end to end
Firmware, web console, and mobile apps are open source and auditable, with signed updates.
Technical data
Specifications.
Performance
- Max capture
- 4K @ 30 Hz
- Video encoder
- Hardware H.264 / H.265
- Latency target
- Flagship pipeline · about 30 ms added at 1080p60, WarpKVM app
- HDMI output
- Local monitor out, 1080p @ 60 Hz
- Sustained load
- 4K @ 30 Hz encode, passively cooled
Connectivity
- I/O
- 2× HDMI 2.0 · 3× USB-C · 2× Gigabit Ethernet
- HDMI
- Two HDMI 2.0: capture in, 1080p 60 local out
- USB
- Three USB-C for target, power, and peripherals
- Ethernet
- Two Gigabit ports, daisy-chain capable
- Wireless
- Wi-Fi 6 + Bluetooth
- Mesh
- Native Tailscale, zero open ports, end-to-end encrypted
- Power
- USB-C PD · optional PoE
Compute
- CPU
- 4× Cortex-A53
- Memory
- 1 GB DDR3L
- Storage
- 32 GB microSD
Build & form
- Enclosure
- Injection-molded, black (final material to be confirmed)
- Cooling
- Passive, silent, no moving parts
- Dimensions
- 88 × 56 × 22 mm
- Weight
- To be confirmed
- Mounting
- 4× M3 threaded inserts · rack-mount compatible
- Status indicator
- Single LED reading power, link, and mesh
- Certifications
- Pending: CE · FCC · RoHS
- Sustainability
- 95% recyclable, designed to be opened and repaired

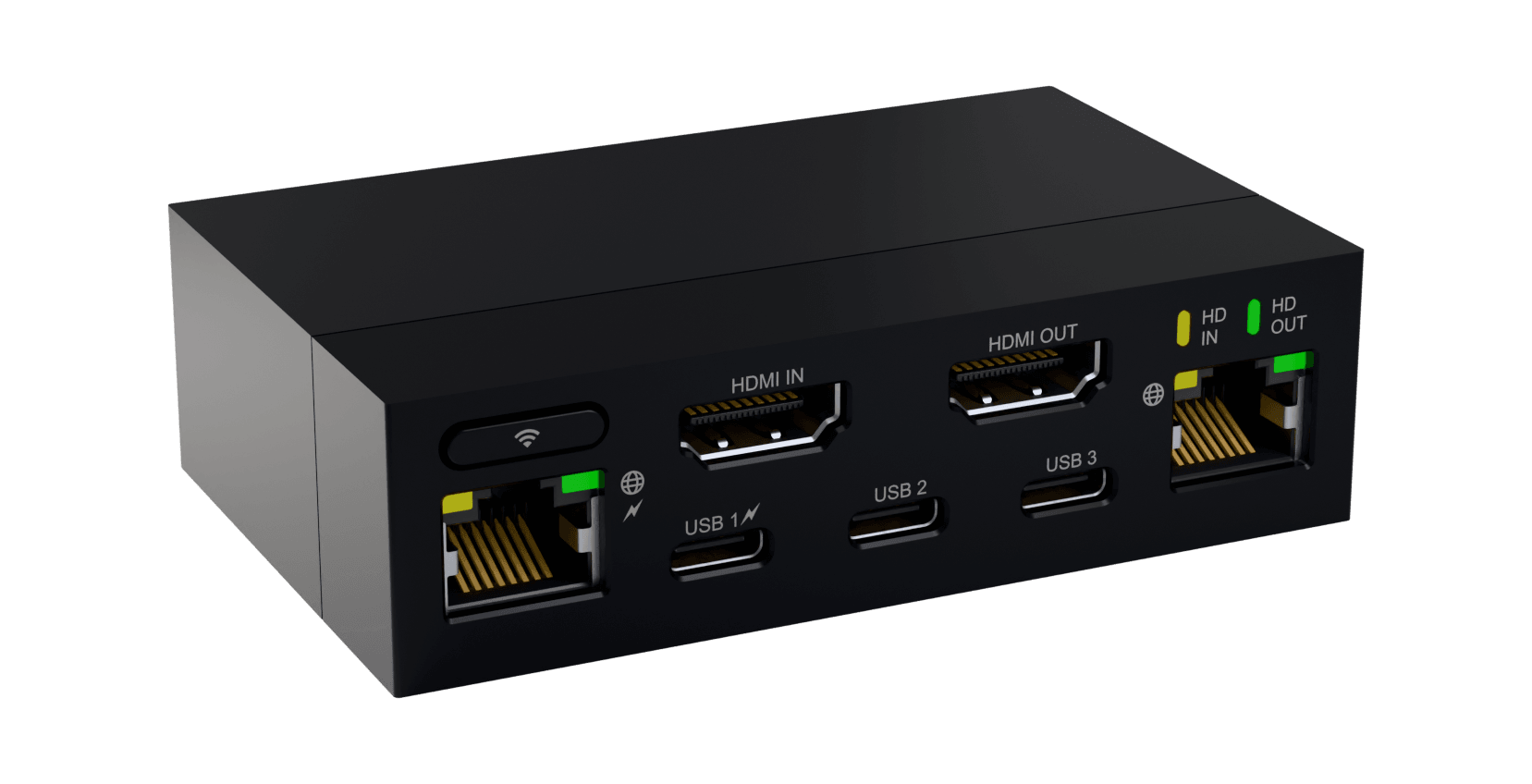

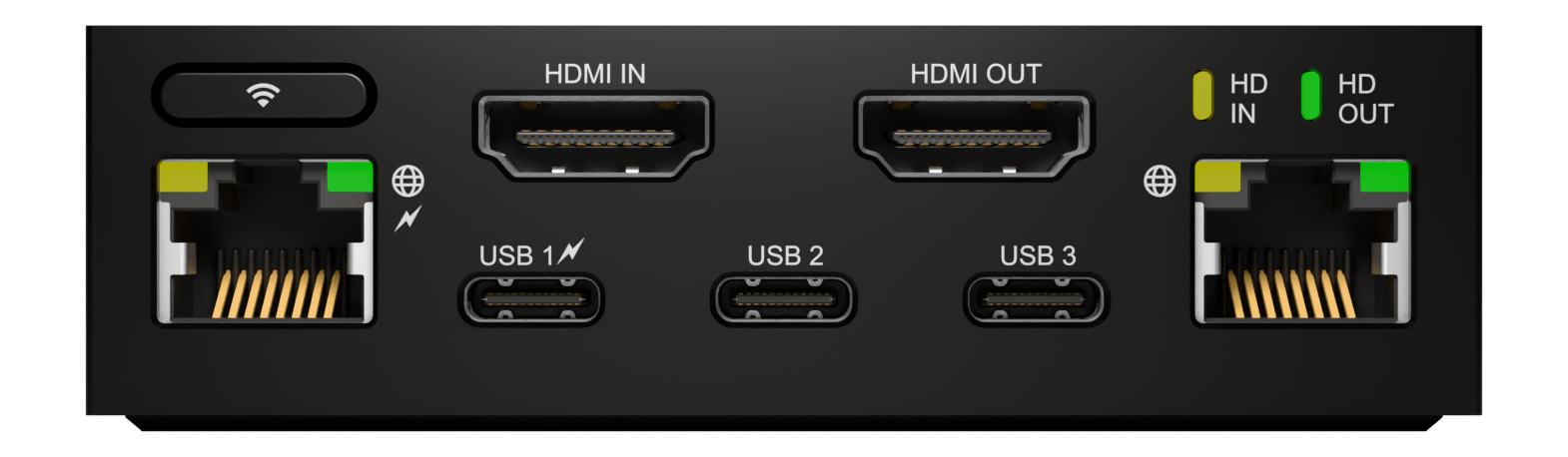

I/O
Every port, mapped.
- BLE / Wi-Fi
- Pairing button
- HDMI
- Input
- HDMI
- Output
- Diagnostic
- Video LEDs
- Ethernet
- 1 Gb · PoE in
- USB-C 1
- Power in
- USB-C 2
- HID · mouse out
- USB-C 3
- Expansion
- Ethernet
- 1 Gb · daisy-chain
Scale
One node
or a thousand.
Every WarpKVM is a node on the same mesh. Start with a single machine and grow to a rack, a lab, a fleet. The architecture never changes; only the count does.
×1
One computer
Your daily driver, yours from anywhere. BIOS to desktop, all of it.
×3
Three monitors
A node per head. Every display of the battlestation, captured and reachable.
×1
The living-room TV
Casting mode: HDMI out to the big screen, your gaming rig from the couch.
×1
A server in the homelab
Headless by design, never out of reach. Rescue a wedged box without leaving bed.
×∞
A datacenter
Daisy-chained Ethernet, one tailnet, multi-device view. The whole fleet in one pane.
