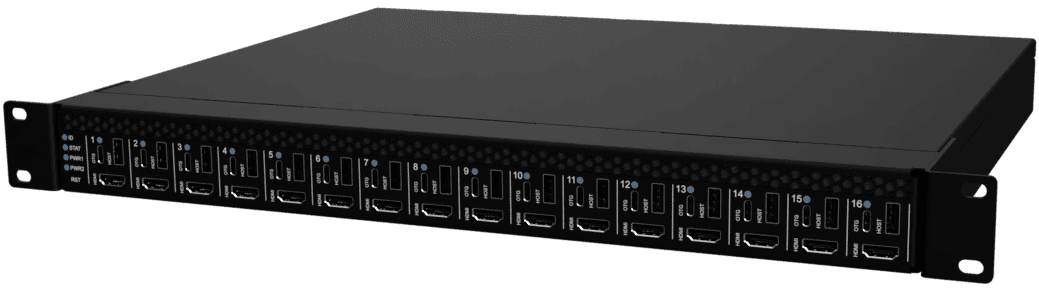

WK chassis family
Multi-port KVM over IP. 8, 16, or 32 ports, and every port is its own KVM.
Multi-port KVM chassis at 8, 16, or 32 ports. Dedicated capture and encode hardware behind every connector means all ports stream 4K at 30 Hz concurrently, with nothing to install on the target: two cables and the machine is on the plane. Part of the rack line, listed on the enterprise store.
Documentation coming soon
Setup guides, wiring diagrams, and troubleshooting for the WK chassis family are being written and will land here before it ships. The specifications below are current. If you need something specific in the meantime, get in touch.
What it does
- A KVM behind every port. Dedicated capture and encode per connector. All ports stream 4K at 30 Hz at the same time; nothing is shared, nothing queues.
- Nothing to install. Two cables per target, HDMI and USB. No agent on the host, no dongles on the cable.
- Firmware that recovers itself. Every port module boots from a golden SPI image and updates A/B on its own 8 GB eMMC. A bad flash rolls back, and any module can be remotely power-cycled without leaving the console.
- One system at any size. Federate any WK or WO unit into a single IP, a single login, and one audit trail.
- Audit-grade access. RBAC with per-port permissions, and session recording to onboard NVMe.
- Structurally isolated. Port modules are never reachable from the customer network; management and production networks are physically separate.

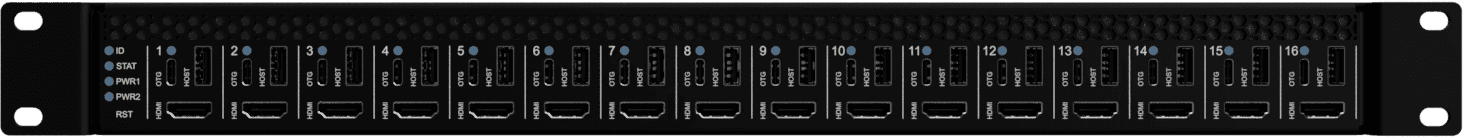

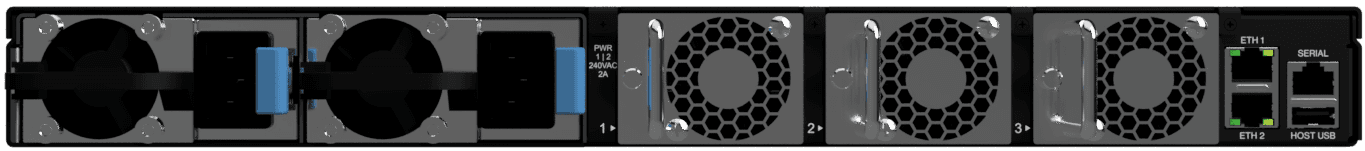

Front and rear
Specifications
Configurations
| SKU | Description | Price | Per port |
|---|---|---|---|
| WK-0808-4K30-HR | 8-port chassis, 1U half-width / desktop | $2,795 | $349 |
| WK-1616-4K30-1U | 16-port chassis, 1U full-width | $4,995 | $312 |
| WK-3232-4K30-2U | 32-port chassis, 2U, two federated units | $9,795 | $306 |
Pricing preliminary until release.
Connectivity
| Item | Detail |
|---|---|
| Targets | HDMI and USB cable per port, no dongles |
| USB-A | Per-port host connector for serial adapters, peripherals, and ATX control cards |
| Ethernet | Redundant Ethernet inputs |
| Power | Dual redundant 250 W inputs |
| Management | Serial and USB management ports |
Capture
| Item | Detail |
|---|---|
| Ports | Dedicated capture and encode per port |
| Resolution | 3840 × 2160 @ 30 Hz, all ports concurrent |
| Encode | Hardware H.264 / H.265 |
| Firmware | Per-port golden SPI image · A/B updates on 8 GB eMMC |
| Recovery | Remote power cycle per port · failed updates roll back |
Management
| Item | Detail |
|---|---|
| Access | Browser-native console, no client software |
| Federation | Any WK or WO unit: single IP, single login |
| Access control | RBAC, per-port permissions |
| Audit | Session recording to onboard NVMe |
| Isolation | Port modules isolated from the customer network |
Options
| Item | Detail |
|---|---|
| -DC | DC power input |
| -TAA | US assembly and US PCBAs · +$700 per unit |
